Numeric Columns tab

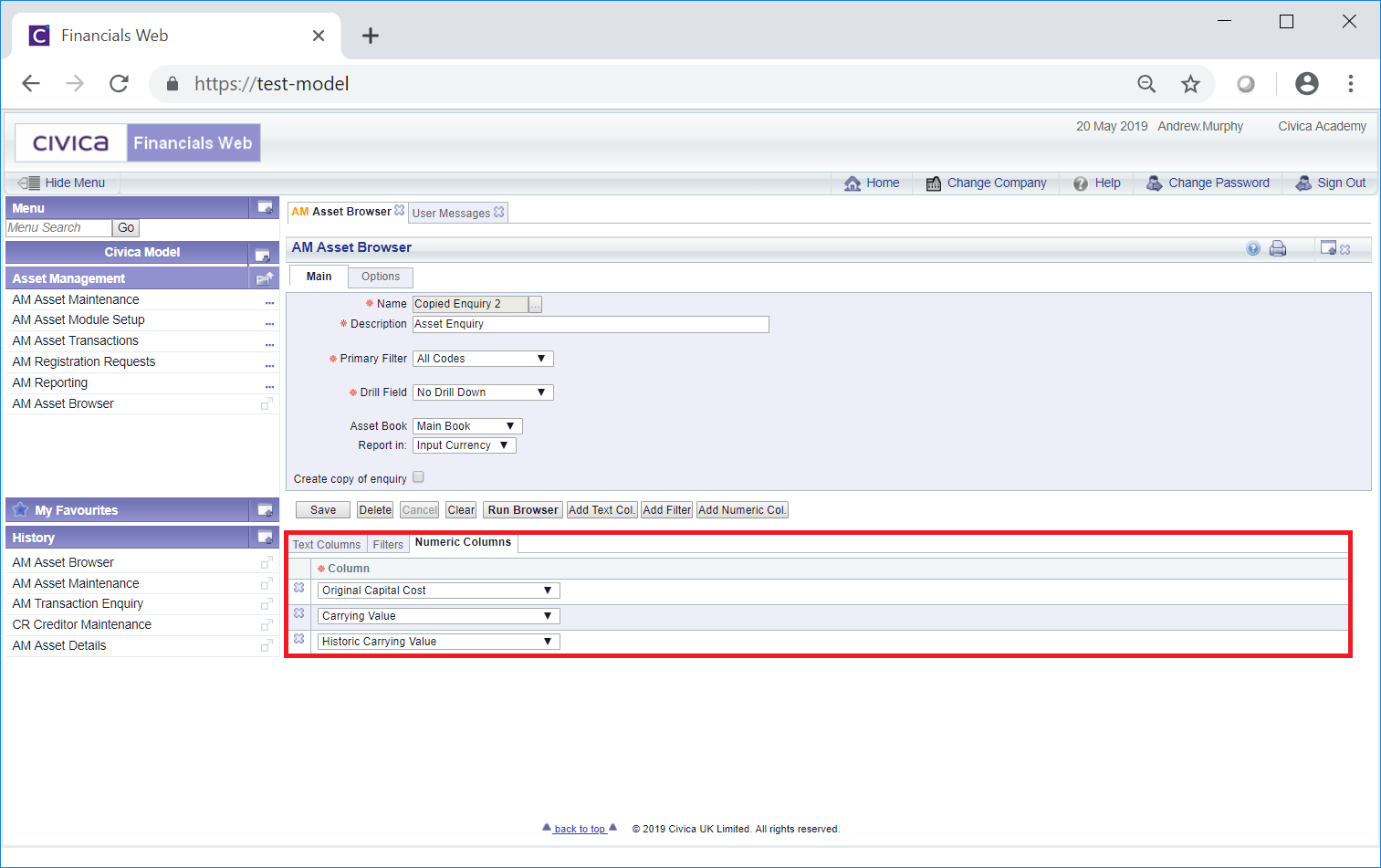

The Numeric Columns tab in the Grid at the bottom of the Main tab of the AM Asset Browser form:

Will allow you to specify the numeric fields to be shown as columns in the results when the Browser Enquiry is run.

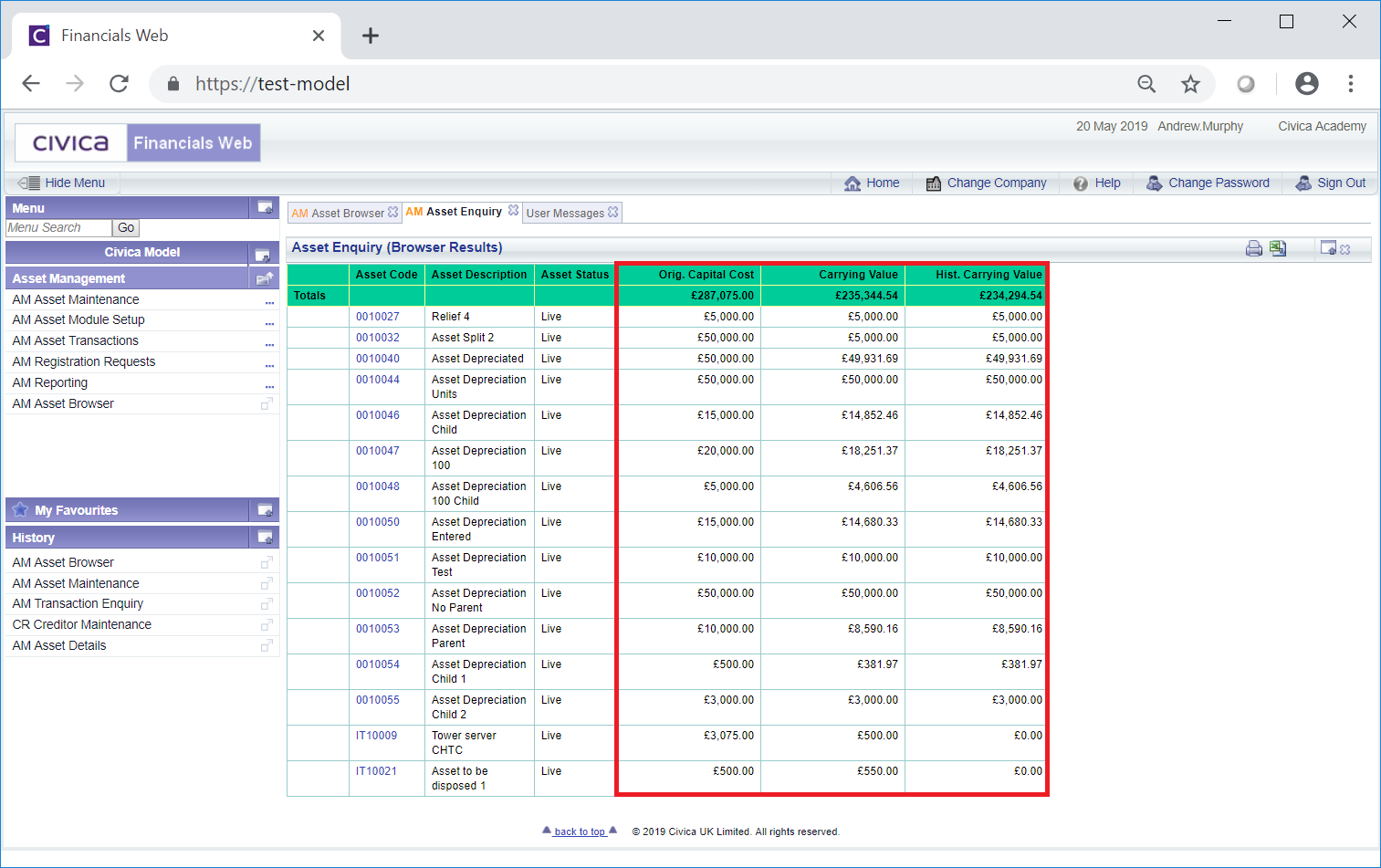

In the above example the fields in the Numeric Columns tab are Original Capital Cost, Carrying Value and Historic Carrying Value.  Running the Enquiry will result in these fields being displayed as columns:

The options in the Column column for existing Lines in the Numeric Columns tab on the AM Asset Browser form can be changed by selecting a different option from the drop-down list.

New Lines can be added by clicking on the  button.  A new Line will be added to the bottom of the Numeric Columns tab:

In the Column column of the new Line select the required option from the drop-down field.

The new Line can be removed by clicking on the  button to the left of the Line.  Any of the existing Lines on the tab can be removed by clicking on the  located on the left of the required Line.   A message will be displayed asking for confirmation that the Line is to be removed.
